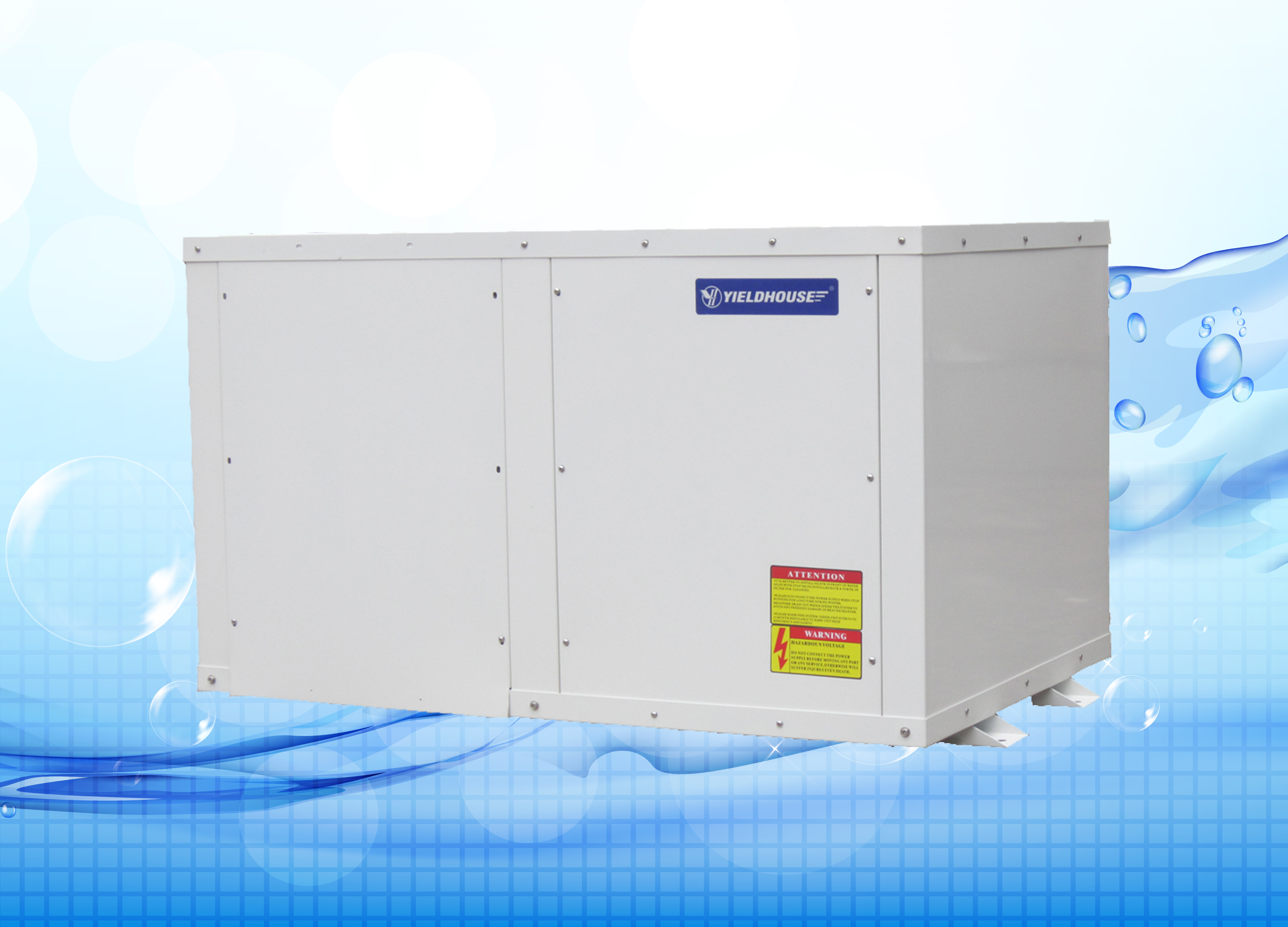

Земли источник/вода источника теплового насоса воды нагреватель YGS

Model		YGS-135S	YGS-170S	YGS-225S	YGS-270S	YGS-350S
Rated Cooling Capacity*	KW	13.5	17.0	22.5	27.0	35.0
Rated Cooling Capacity*	BTU	46000	58000	77000	92000	120000
Rated Heating Capacity*	KW	14.5	18.0	24.0	29.0	37.5
Rated Heating Capacity*	BTU	49000	61000	82000	99000	128000
Rated Cooling Capacity**	KW	12.6	15.8	21.0	25.0	32.6
Rated Cooling Capacity**	BTU	43000	54000	72000	85000	110000
Rated Heating Capacity**	KW	11.5	13.5	18.5	22.0	29.0
Rated Heating Capacity**	BTU	39000	46000	63000	75000	100000
Cooling Input Power*	KW	3.0	3.7	5.0	6.0	7.7
Cooling Running Current*	A	5.3	6.6	8.9	10.7	13.7
Heating Input Power*	KW	3.6	4.5	6.0	7.0	9.2
Heating Running Current*	A	6.4	8.0	10.7	12.5	16.4
Cooling Input Power**	KW	3.6	4.5	6	7.1	9.3
Cooling Running Current**	A	6.4	8.0	10.7	12.7	16.6
Heating Input Power**	KW	3.4	4.2	5.6	6.7	8.7
Heating Running Current**	A	6.1	7.5	10.0	12.0	15.5
Power Supply	V/PH/HZ	380V/3Ph/50HZ
Quantity of Compressor		1	1	1	2	2
Compressor Type		Scroll
Evaporator		High-efficient Copper Heat Exchanger
Water Flow Volume	m3/h	2.36	2.87	3.81	4.6	5.8
Water Conncetion	mm	DN25	DN32	DN32	DN40	DN40
Water Pressure Drop	kPa	34	34	36	36	38
Condenser		High-efficient Copper Heat Exchanger
Water Flow Volume	m3/h	2.7	3.3	4.6	5.3	6.5
Water Conncetion	mm	DN25	DN32	DN32	DN40	DN40
Noise	dB(A)	42	42	44	44	46
*Unit Dimension(LWH)*	mm	640830540	740830600	740830600	1000930680	1000930680
*Packing Dimension(LWH)*	mm	700930600	800930660	800930660	10601030740	10601030740
Net / Gross Weight	KG	129/151	139/162	221/250	242/273	255/286

Measuring Conditions	Cooling Mode		Heating Mode
Measuring Conditions	Applicable side inlet/outlet water temp.	Cooling side inlet/outlet water temp.	Applicable sideinlet/outlet water temp.	Applicable sideinlet/outlet water temp.
Ground-water*	12/7.C	18/29.C	40/45.C	15/-.C
Ground-loop**	12/7.C	25/30.C	40/45.C	0/-.C

Notes:1.Items with *are figures for ground-water style. 2. Item with ** are figures for ground-loop style.
