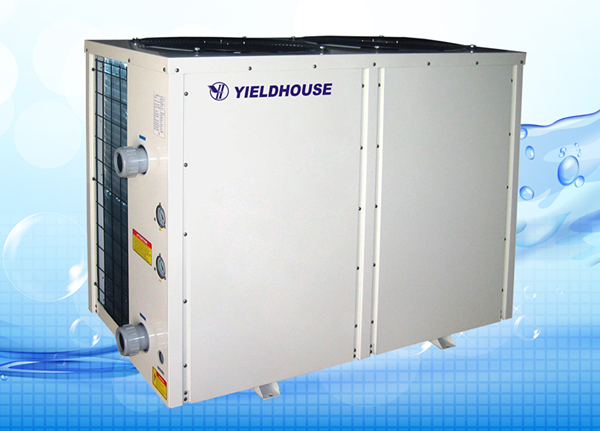

Swimming Pool Heat Pump With PVC Titanium Heat Exchanger(R407c/R410a) Top Discharge-YAPA

*Heating & Cooling Functions For Wide Application Case
*High Efficiency Alloyed Aluminum Fin Coil
*Intelligent Controller With Big LCD Controller
*Ice Defrosting, System Pressure, Water Flow Switch
Protection Functions Make Product Safety
*High Quality Compressor And Titanium Heat Exchanger

Product Description
Specifications
Download

Swimming Pool Heat Pump With PVC Titanium Heat Exchanger(R407c/R410a) Top Discharge-YAPA

Model		YAPA-350HS	YAPA-450HS	YAPA-500HS
Heating Capacity in A26/W26°C	W	39000	49500	55000
Heating Capacity in A7/W27°C	W	25000	31500	36000
Heating Capacity	W	35000	45000	50000
Heating Capacity	BTU	120000	153000	170000
Heating Input Power	W	7100	9000	10300
Heating Running Current	A	12.3	16.1	18.4
Cooling Capacity	W	29000	32000	36000
Cooling Capacity	BTU	100000	110000	123000
Cooling Input Power	W	9600	10700	12100
Cooling Running Current	A	17.3	19.1	21.6
Power Supply	V/PH/HZ	380V/3Ph/50Hz
Quantity of Compressor		2	2	2
Compressor Type		Scroll
Noise	dB(A)	61	61	61
Water Connection	mm	63	63	63
Water Flow Volume	m³/h	8-15	8-15	8-15
Water Pressure Drop	kpa	18	18	18
*Dimension (L w * H)**	mm	14487301060	14487301260	14487301260
*Packing Size (L w * H)**	mm	16308101180	16308101380	16308101380
Net Weight / Gross Weight	kg	240 / 270	250 / 280	260 / 290

Measuring conditions:

Heating:Dry bulb 24°C , wet bulb 19°C , water entering temperature 27°C .

cooling:Dry bulb 35°C , wet bulb 24 °C, water entering temperature 27°C.
