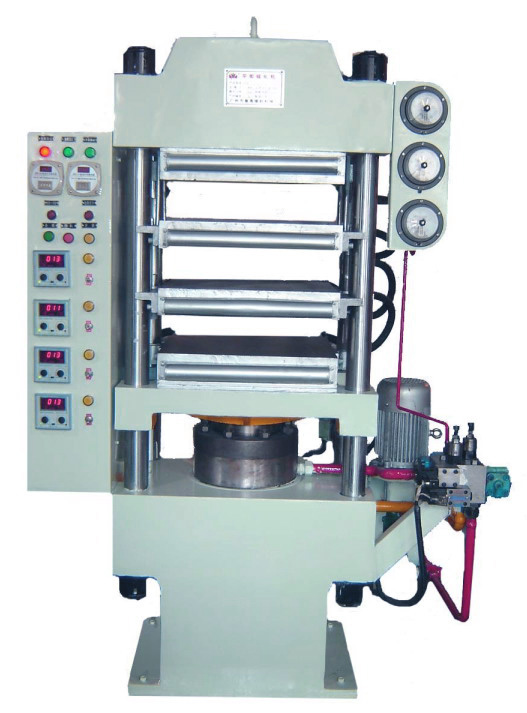

63T Plate Vulcanizer (for circuit board)
PRODUCTS
Heat Pump Water Heater for House
Commercial Heat Pump and Chiller
Monobloc Type Heat Pump with Water Tank
Air Sourced Heat Pump Water Heater Side Discharge
Air Sourced Heat Pump Water Heater Top Discharge
Swimming Pool Heat Pump Side Discharge
Swimming Pool Heat Pump B2 Series
Swimming Pool Heat Pump Top Discharge
Ground/Water Sourced Heat Pump Water Heater
80°C Hot Water Air Source Heat Pump with R134a
Pool Dehumidifier Supply Cool Air and Hot Water
Aquarium Chiller
EVI Air Sourced Heat Pump
T3 Condition Swimming Pool Heat Pump
Heat Pump Dryer for Industry and Agriculture
Plate Vulcanizer
Plate Vulcanizer (for circuit board)
Rubber Cutter
Rubber Calender
Rubber(Plastic) Mill
63T Plate Vulcanizer (for circuit board)
Product Description
Specifications
Download
Model
XLB-D500*500
Total Pressing Force(KN)
630
Maximum Working Fluid Pressure(Mpa)
20
Distance Between Heating Plates(mm)
90--125(选定)
Size of Heating Plate(mm)
500*500
Plate Heating Mode
Electricity
Electric Heating Capacity(KW)
17.6
Plunger Stroke(mm)
250
Pressing Force of Heating Plate(Mpa)
2.52
Motor(KW)
3
Overall Dimensions(mm)
1400*1100*2000
Net Weight(Kg)
2250
