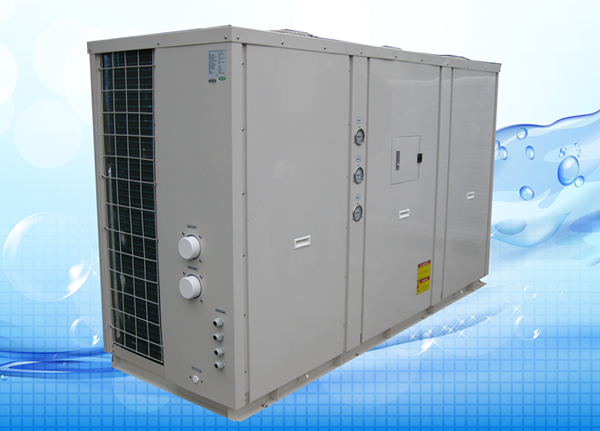

Swimming Pool Heat Pump With PVC Titanium Heat Exchanger(R407c/R410a) Top Discharge-YAPA

*Heating & Cooling Functions For Wide Application Case
*High Efficiency Alloyed Aluminum Fin Coil
*Intelligent Controller With Big LCD Controller
*Ice Defrosting, System Pressure, Water Flow Switch
Protection Functions Make Product Safety
*High Quality Compressor And Titanium Heat Exchanger

Product Description
Specifications
Download

Swimming Pool Heat Pump With PVC Titanium Heat Exchanger(R407c/R410a) Top Discharge-YAPA

Model		YAPA-900HS
Heating Capacity in A26/W26°C	W	93000
Heating Capacity in A7/W27°C	W	61000
Heating Capacity	W	90000
Heating Capacity	BUT	306000
Heating Input Power	W	17500
Heating Running Current	A	31.2
Cooling Capacity	W	58000
Cooling Capacity	BUT	200000
Cooling Input Power	W	18800
Cooling Running Current	A	33.5
Power Supply	V/PH/HZ	380V/3Ph/50Hz
Quantity of Compressor		3
Compressor Type		Scroll
Noise	dB(A)	62
Water Connection	mm	63
Water Flow Volume	m³/h	35-55
Water Pressure Drop	kpa	28
*Dimension (L w * H)**	mm	21507651290
*Packing Size (L w * H)**	mm	22759001500
Net Weight / Gross Weight	kg	510/570

Measuring conditions:

Heating:Dry bulb 24°C , wet bulb 19°C , water entering temperature 27°C .

cooling:Dry bulb 35°C , wet bulb 24 °C, water entering temperature 27°C.
