Zuhause > Produkt > Wärmepumpe-Wasser-Heizung für Haus > Wärmepumpe-Wasser-Heizung für Haus-YASPB

Produkt

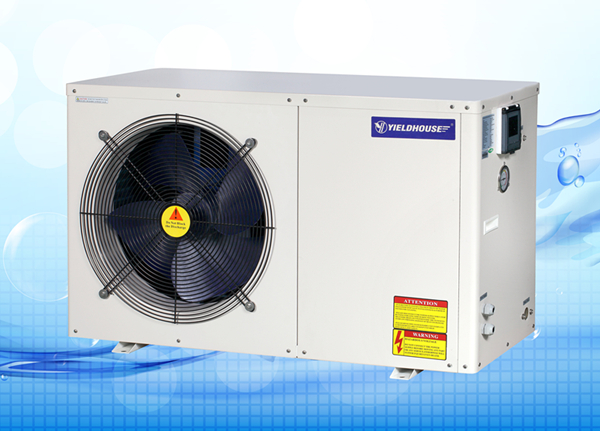

Wärmepumpe-Wasser-Heizung für Haus-YASPB

Beschreibung
Technische Daten
Download

MODEL		YASBP-010HL	YASBP-015HL	YASBP-020HL	YASBP-025HL	YASBP-030HL
Heating Capacity	W	3300	4000	6300	9000	10500
Heating Capacity	BUT	11250	13650	21500	30700	35850
Power Supply	V/PH/HZ	220V/1Ph/50Hz	220V/1Ph/50Hz	220V/1Ph/50Hz	220V/1Ph/50Hz	220V/1Ph/50Hz
Input Power	W	820	1330	2150	2900	3380
Running Current	A	3.73	6.21	10.62	13.24	15.4
Hot Water Generated	L/h	75	95	145	200	240
Thermostat Factory Setting	°C	55°C	55°C	55°C	55°C	55°C
Maximum water outlet temp	°C	60°C	60°C	60°C	60°C	60°C
Import connection size	G"	3/4	3/4	3/4	3/4	3/4
Compressor Quantity		1	1	1	1	1
Noise	dB(A)	48	48	48	48	48
Net Dimension	mm	770300490	936360540	936360540	1010370615	1010370615
Net weight	kg	35	51	51	65	65

Note:

1, the above parameters test conditions: Inlet Temp 20 ° c, Outlet Temp 55 ° c, Dry Bulb 20 ° c, Wet Bulb 15°c

2, model, parameters, performance may vary depending on productimprovement change

without prior notice. Specific parameters please refer to product nameplate as standard.
