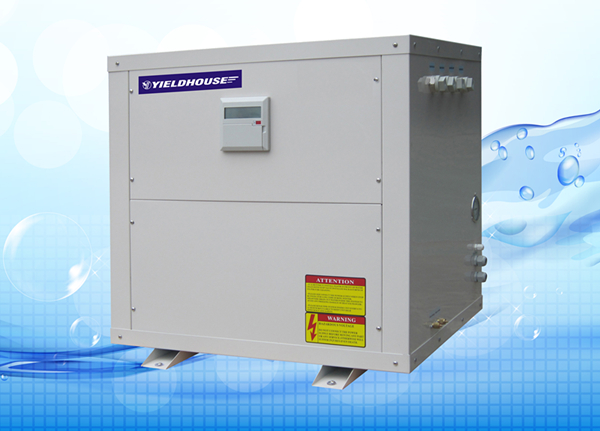

Boden Quelle/Wasser Quelle Wärmepumpe Wasser-Heizung-YGS

Model		YGS-95	YGS-115
Rated Cooling Capacity*	KW	9.5	11.5
Rated Cooling Capacity*	BTU	32000	39000
Rated Heating Capacity*	KW	10.0	12.0
Rated Heating Capacity*	BTU	34000	41000
Rated Cooling Capacity**	KW	8.8	10.7
Rated Cooling Capacity**	BTU	30000	36000
Rated Heating Capacity**	KW	8.0	9.7
Rated Heating Capacity**	BTU	27000	33000
Cooling Input Power*	KW	2.1	2.6
Cooling Running Current*	A	10.0	12.4
Heating Input Power*	KW	2.3	2.9
Heating Running Current*	A	11.0	13.9
Cooling Input Power**	KW	2.5	3.1
Cooling Running Current**	A	12.0	14.8
Heating Input Power**	KW	2.2	2.8
Heating Running Current**	A	10.5	13.4


Power Supply	V/PH/HZ	220V/1Ph/50HZ
Quantity of Compressor		1	1
Compressor Type		Rotary	Scroll
Evaporator		High-efficient Copper Heat Exchanger
Water Flow Volume	m3/h	1.63	1.95
Water Conncetion	mm	DN25	DN25
Water Pressure Drop	kPa	32	32
Condenser		High-efficient Copper Heat Exchanger
Water Flow Volume	m3/h	1.8	2.3
Water Conncetion	mm	DN25	DN25
Noise	dB(A)	40	40
*Unit Dimension(LWH)*	mm	640830540	640830540
*Packing Dimension(LWH)*	mm	700930600	700930600
Net / Gross Weight	KG	89/98	109/128

Measuring Conditions	Cooling Mode		Heating Mode
Measuring Conditions	Applicable side inlet/outlet water temp.	Cooling side inlet/outlet water temp.	Applicable sideinlet/outlet water temp.	Applicable sideinlet/outlet water temp.
Ground-water*	12/7.C	18/29.C	40/45.C	15/-.C
Ground-loop**	12/7.C	25/30.C	40/45.C	0/-.C

Notes:1.Items with *are figures for ground-water style. 2. Item with ** are figures for ground-loop style.
