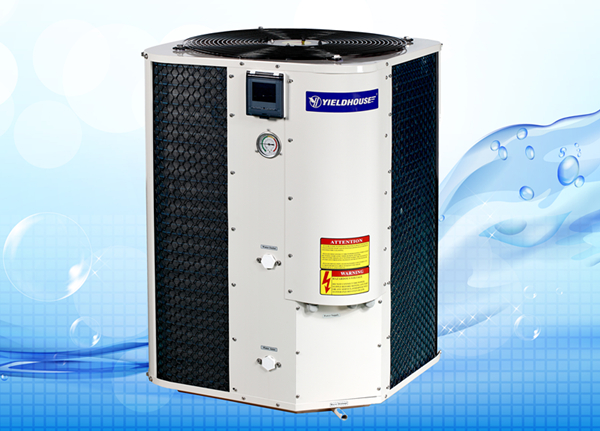

| Model |
YASA-95HL |
YASA-135HS |
YASA-195HS |
| Heating Capacity at A20°C |
W |
12500 |
17500 |
32500 |
Heating Capacity
|
W |
10500 |
13500 |
25000 |
| BTU |
35820 |
46000 |
85300 |
| Power Supply |
V/PH/HZ |
220V/1Ph/50Hz |
380V/3Ph/50Hz |
380V/3Ph/50Hz |
| Input Power |
W |
3100 |
4400 |
8100 |
| Running Current |
A |
15.6 |
7.8 |
13.6 |
| Water flow volume |
m3/h |
1.8 |
2.3 |
4.3 |
| Thermostat Factory Setting |
°C |
55°C |
| Maximum water outlet temp. |
°C |
60°C |
| Compressor Quantity |
|
1 |
1 |
1 |
| Compressor Quantity |
|
NO |
| Noise |
dB(A) |
58 |
58 |
6 |
| Net Dimension(L*W*H) |
mm |
660*660*860 |
660*660*960 |
1448*730*1060 |
| Packing Size(L*W*H) |
mm |
700*750*1010 |
700*750*1110 |
1630*810*1180 |
| Net /Gross Weight |
kg |
130/139 |
168/177 |
260/290 |
